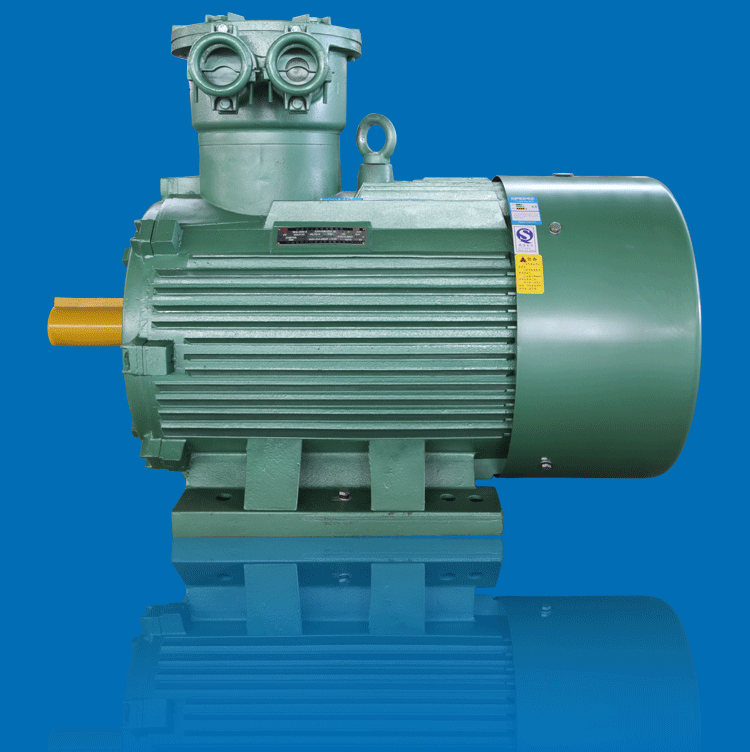

YBX3/YB3-225S-4-37KW防爆電機功率為30KW,轉速在1480左右，效率93.9%，功率因數0.86，電流在380V時為69.62A,額定轉矩238.75(Nm)堵轉轉矩2.2Nm，最大轉矩2.3Nm。噪聲81Lw/73Lp，轉動慣量1.85kg.m2。

YBX3/YB3-225S-4-37KW防爆電機電壓為380V,380/660V,660/1140V.安裝方式有，B5立式，B3臥式，B35立臥式等，防爆等級分Exd IIC T4、Exd IIB T4、Ex tD B21 T135°C等。

YBX3/YB3-225S-4-37KW的外殼防護等級為IP55，冷卻方式為IC411。YBX3/YB3-200L-4-30KW防爆電機還可制成濕熱帶型YB3/YBX3-TH、干熱帶型YB3/YBX3-TA、戶外型YB3/YBX3-W和戶外防中等腐蝕型YB3/YBX3-WF1以及戶外濕熱類型YB3/YBX3-THW、戶外干熱帶型YB3/YBX3-TAW、熱帶型YB3/YBX3-T、戶外熱帶型YB3/YBX3-TW。

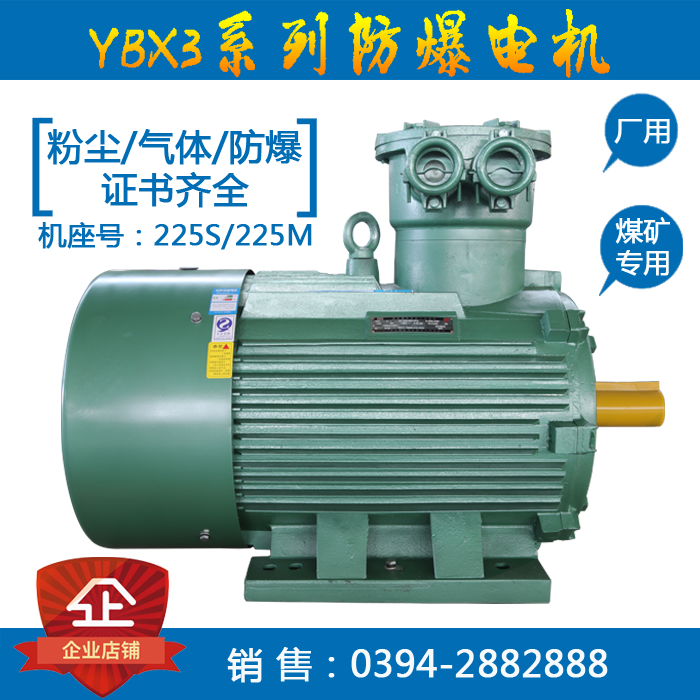

YBX3/YB3-225型號有：

YBX3/YB3-225S-4-37KW

YBX3/YB3-225S-8-18.5KW

YBX3/YB3-225M-2-45KW

YBX3/YB3-225M-4-45KW

YBX3/YB3-225M-6-30KW

YBX3/YB3-225M-8-22KW
